Minitec low profile underfloor heating
Wet installation for residential and commercial buildings
Minitec - low building floor heating with quick response time
Thanks to its minimal depth of around 1 cm, Uponor Minitec is the perfect system for renovation projects. The Uponor Minitec sheeting element, with the Uponor PE-Xa pipes measuring 9.9x1.1 mm, is easy to lay on existing screed, timber or tiles. The adhesive layer on the back of the sheet guarantees a secure bond during installation. The levelling layer is installed just above the studs, resulting in an increase in floor height of only 16 mm. Minitec is also possible to be installed with defined floor insulation materials. The special design of the sheeting elements ensures that the levelling compounds flow well and can bond directly with the substrate.
Application areas:
- Radiant underfloor heating and cooling
- Wet installation
- Residential and commercial applications
- For use with qualified filler materials
Specification:
- Panel size: 1120 x 720 mm
- Total panel height: 12 mm
- Pipe dimensions: 9.9 x 1.1 mm
- EN 13501-1 fire classification class E
- Pipe spacing: 5, 10 or 15 mm
- Net surface with overlapping nubs: 0.77 m²
Learn how to retrofit Uponor Minitec underfloor heating
- Check out the video that explains the basic principle of how Uponor minitec underfloor heating is installed.
Benefits of the Uponor Minitec System

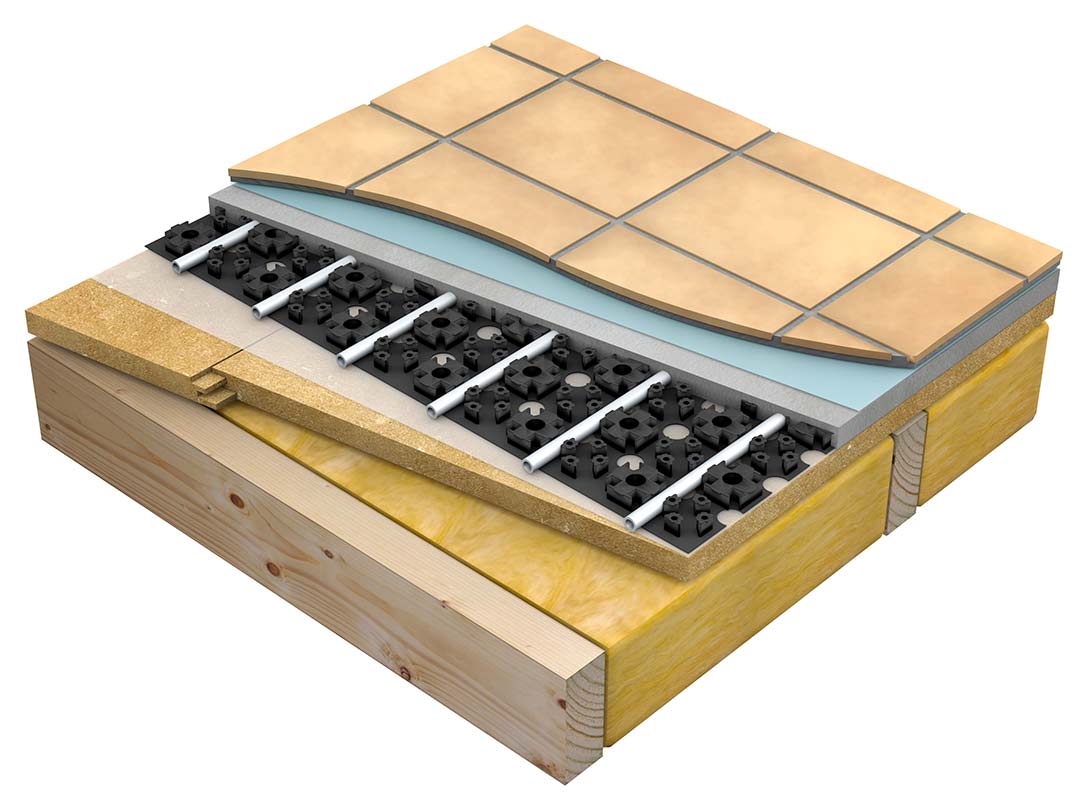

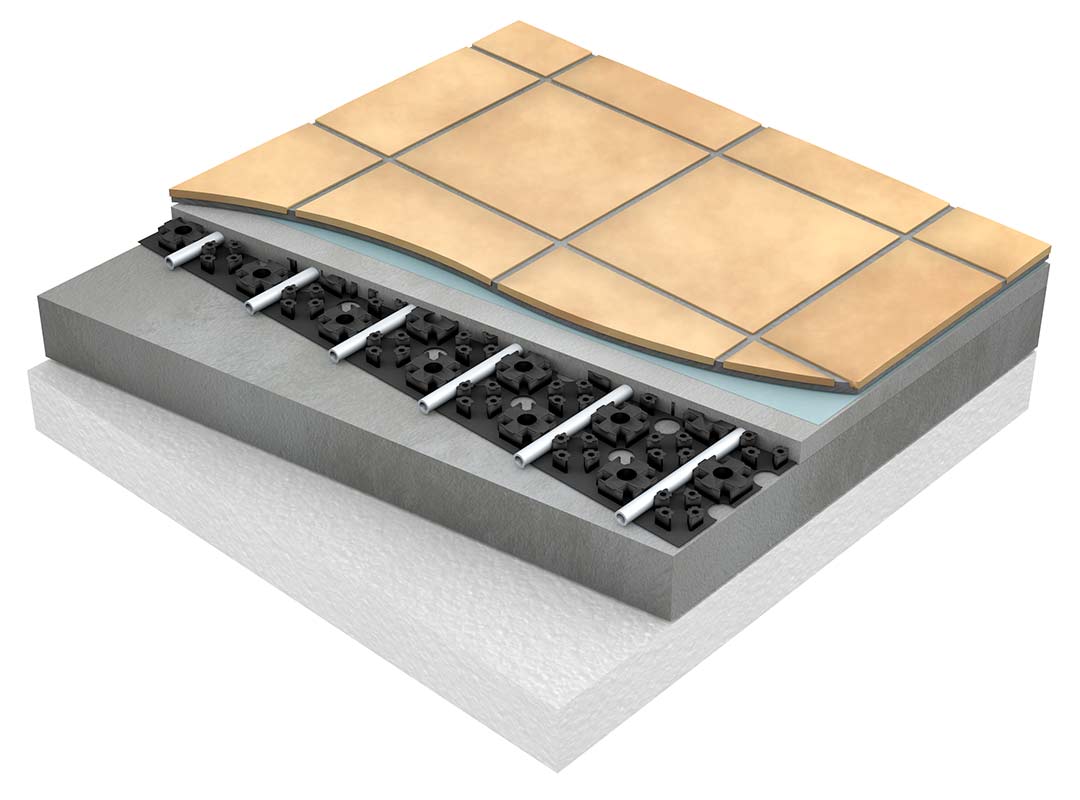

Construction of Uponor underfloor heating system Minitec
Look up or download brochures for minitec low profile underfloor heating
Uponor Minitec low profile underfloor heating
Product information
Select Uponor underfloor heating and cooling wet installation system to suit your individual requirements
Underfloor heating systems in residential and commercial buildings which mainly require heating are often the first choice. And since the requirements for the design and function of an underfloor heating can differ very much, Uponor offers tailor-made solutions not only for new buildings, but also for renovation. To increase comfort, these systems can also be used to cool rooms.
